Rental RFID barrier gate system monthly
RM 1000
Heavy duty DC Blush motor
Anti interference toll MyRFID / others brand RFID
Anti cloned reader
No Installation fee
FREE RFID card / RFID sticker *
Thunderstorm damage our warranty
1:1 equipment part Exchange
Complete work , No hidden cost
Service team attend within 20 working hour

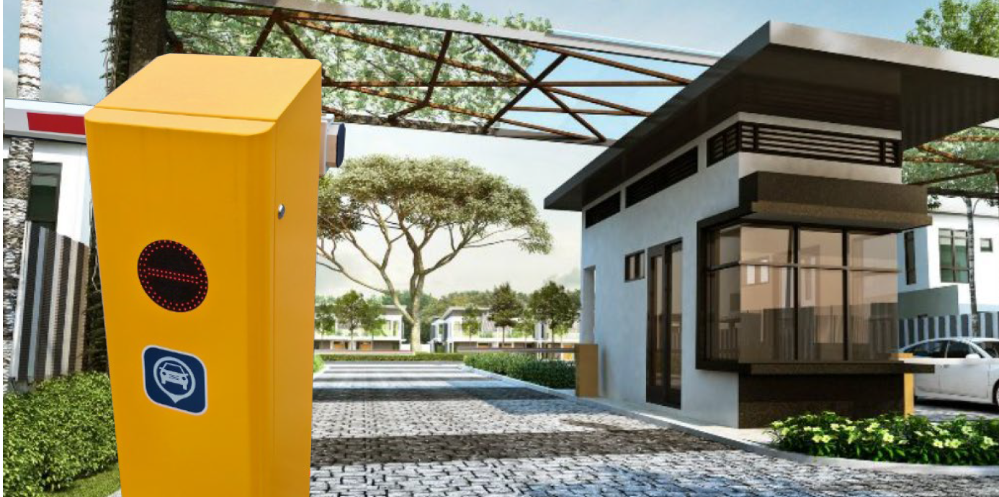

Barrier Gate System
Safecom DC blush Boom gate
Description
The DC boom barrier gate is the latest generation barrier gate product . It has all the advantages of previous products and has the advantages of price advantage and higher quality. This product is fifth-generation barrier gate is a highly mature product that has undergone five upgrades. It boasts the highest reliability, the best cost-effectiveness, and the most stable performance. It is suitable for any environment.
Technical Parameter
Working Temperature-30°C~+70°C
Power SupplyDC24V
Open/close Speed1.5Sec-6Ｓec
Rated Power150WDriving MethodDC Brushless MotorOutput Power56.8N.m
Protection GradeIP54
Motor No - load Speed1850r/minMax Boom Length6m
MAG AC Boom Gate
Description
MAG BR600T series modern grey concept effectively increase premium prestigious impression of guardhouseentrance at any high end lifestyle residential, premium commercial building or boutique factory. BR600T design is well balanced between performance, stability and affordability. It is not the best barrier gateintheworld that is too high cost to buy. It is not the super low cost barrier gate using cheap component that alwaysbreakdown. BR600T design philosophy is to be “good enough” and affordable for target application. BR600T is backed up with comprehensive local spare parts. Fast spare parts availability is important toensureyourbarrier resume operation in shortest time possible in the event of break down.
Technical Parameter
Motor MAG Bluespeed AC motor
Max starting torque Max torque : 1 second : 1.4±0.2 N.M | 3 / 6 second:
2.1 ± 0.1 N.M
AC rotation speed AC rotation speed :1 second : 900 ± 50 RPM| 3/6second : 460 ± 40 RPM
Mechanical temperature -40° to 75 C
Electrical temperature -10° to 75 C
Power supply input 220V ± 10% AC, 50/60Hz
Power consumption 80 watt - 1.25A @ 240V
Starter Starter Capacitor 9+9μF 450VAC
Relative humidity < 90 %
Arm speed 1.8, 3 , 6 second
Internal lubrication Grease
IP rating IP44
ZKteco AC Boom gate
Description
The CMP200 series offers brand-new automatic barrier gates equipped with telescopic boom arm
that allows direction exchanging according to site application and a silvery housing with built-in LED
indicating the state of the parking barrier, providing humanized user experience.
Its appearance and structure are designed based on the feedback and needs of the market and industry.
Comparing with other barrier gates, the CMP200 series of automatic barrier gate products with telescopic
straight boom might be an economic good fit meeting demands in different parking lots.
Technical Parameter
Gate Opening/Closing Time 3s (max. 4.5m), 6s (max. 6m) Working Temperature Range -25°C ~ +75°C
Supply Voltage AC110V/220V, 50/60Hz Working Humidity Range ≤90%
Power Consumption 100W (max. 120W) Housing Dimensions (D*W*H) 350 * 280 * 1010 (mm)
Remote Controlling Distance ≤30m Packing Dimensions (D*W*H) 430 * 375 * 1100 (mm)
Remote Controlling Frequency 430MHz Net Weight 45kg
Cabinet Material Cold rolled steel Gross Weight 47kg
Boom Material Aluminum and wood
Boom information
Boom Type Telescopic boom Straight boom with LED Folding boom
Boom Length 4.5m(packaging length 2.8m),
6m (packaging length 3.6m)
Max 4.5m Max 4m
Opening/Closing time 3s(max 4.5m), 6s(max 6m) 3s 3s
UHF (RFID) Long Range Reader
Safecom Encrypted UHF long range reader
Description
SC-5312PRO is one of the most powerful all weather ruggedized integrated RFID reader designed with the advanced digital signal processing algorithm to support high & accurate read operation. It works on Malaysia UHF frequency (919.250MHz, 922.750 Mhz) standards and has a read range of Up to 10 mt (adjustable) which makes it an ideal and most widely used UHF Long Range RFID reader for applications like gate automation, parking management, personal tracking and material asset identification. It comes with a 12dbi integrated antenna which provides excellent tag identification rate even in the most adverse and harsh environment.
Technical Parameter
Model SC-5309Pro
Frequency 919.250 - 922.750 MHZ
Built-in antenna 12 DBI linear antenna
Work mode Active / Trigger
RF power 21dbm
Read distance Max 8-10 meter
Communication InterfaceWG26/ WG34
Power supply12VDC
Operating Temp - 10 - + 55c
Reader Size305 x 305 x 75 mm
Reader Weight2kg
ZKteco UHF long range reader
Description
UHF10 Pro is ZKTeco's third-generation UHF readers, with much stable performance, longer reading distance, and faster recognition speed. The UHF reader is equipped with the passive UHF card function, which could be widely used in Vehicle Management and Personnel Management applications. The product also meets the CE, FCC technology requirements.
Technical Parameter
Reading Distance10 to 20 meters (Hand-held test) (Actual scenario test is around 8m)
Antenna Gain12dBi
Dimensions (mm)445 * 445 * 67.5
Weight 3kg
Power1.2 - 4.5W
Frequency 919.250 MHz - 922.750 MHz
Communication Interface Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options)Interface Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Working Model Read Always (Default) and Read by Trigger
